A network administrator is selecting a switch that will operate at the network core. Which three features should the switch support for optimum network performance and reliability? (Choose three.)

port security
security policies
10 Gigabit Ethernet
quality of service (QoS)
hot-swappable hardware
Power over Ethernet (PoE)

For organizations that are implementing a voice over IP solution, what functionality should be enabled at all three layers of the hierarchical network?

Power over Ethernet
quality of service
switch port security
inter-VLAN routing

At which heirarchical layer are switches normally not required to process all ports at wire speed?

core layer
distribution layer
access layer
entry layer

Which hierarchical design characteristic would be recommended at both the core and distribution layers to protect the network in the case of a route failure?

PoE
redundancy
aggregation
access lists

A network technician is asked to examine an existing switched network. Following this examination, the technician makes recommendations for adding new switches where needed and replacing existing equipment that hampers performance. The technician is given a budget and asked to proceed. Which two pieces of information would be helpful in determining necessary port density for new switches? (Choose two.)

forwarding rate
traffic flow analysis
expected future growth
number of required core connections
number of hubs that are needed in the access layer to increase performance

Which two features are supported at all three levels of the Cisco three-layer hierarchical model? (Choose two.)

Power over Ethernet
load balancing across redundant trunk links
redundant components
Quality of Service
link aggregation

Which layer of the OSI model does an access layer LAN switch use to make a forwarding decision?

Layer 1
Layer 2
Layer 3
Layer 4

Configuring communication between devices on different VLANs requires the use of which layer of the OSI model?

Layer 1
Layer 3
Layer 4
Layer 5

What is the likely impact of moving a conventional company architecture to a completely converged network?

Local analog phone service can be completely outsourced to cost-effective providers.
The Ethernet VLAN structure is less complex.
A shared infrastructure is created resulting in a single network to manage.
QoS issues are greatly reduced.
There is less bandwidth competition between voice and video streams.

Which three features are commonly supported at the distribution layer of the Cisco hierarchical network model? (Choose three.)

security policies
Power over Ethernet
switch port security
quality of service
Layer 3 functionality
end user access to network

Refer to the exhibit. Beginning with HR servers and workstations, a network engineer is designing a new security structure for the network. Which set of policies adheres to the hierarchical network model design principles?

Which hierarchical design model layer controls the flow of network traffic using policies and delineates broadcast domains by performing routing functions between virtual LANs (VLANs)?

application
access
distribution
network
core

Which feature supports higher throughput in switched networks by combining multiple switch ports?

convergence
redundant links
link aggregationnetwork diameter

Which two characteristics are associated with enterprise level switches? (Choose two.)

low port density
high forwarding rate
high latency level
support link aggregation
predefined number of ports

Which layer of the hierarchical network design model is refered to as the high-speed backbone of the internetwork, where high availability and redundancy are critical?

access layer
core layer
data-link layer
distribution layer
network layer
physical layer

Refer to the exhibit. The network administrator issues the command no ip classless on Router1. What forwarding action will take place on a packet that is received by Router1 and is destined for host 192.168.0.26?

The packet will be dropped.
The packet will be forwarded to the gateway of last resort.
The packet will match the 192.168.0.0 network and be forwarded out Serial 0/0.
The packet will most closely match the 192.168.0.8 subnet and be forwarded out Serial 0/1

Refer to the exhibit. Which statement is true concerning the routing configuration?

Using dynamic routing instead of static routing would have required fewer configuration steps.
The 10.1.1.0/24 and 10.1.2.0/24 routes have adjacent boundaries and should be summarized.
Packets routed to the R2 Fast Ethernet interface require two routing table lookups.
The static route will not work correctly

Refer to the exhibit. How many routes are child routes?

Refer to the exhibit. How many routes are child routes?
1
3

Which router component is used to store the routing table?

Flash
NVRAM
ROM
SDRAM

When a router boots, what is the default order to locate the Cisco IOS if there is no boot system command?

ROM, TFTP server, flash
flash, TFTP server, ROM
flash, NVRAM, TFTP server
NVRAM, TFTP server, flash

What are two functions of a router? (Choose two.)

It connects multiple IP networks.
It controls the flow of data via the use of Layer 2 addresses.
It determines the best path to send packets.
It manages the VLAN database.
It increases the size of the broadcast domain

On a router, which three components are stored in RAM? (Choose three.)

POST code
the routing table
the running-configuration
the start-up configuration
the bootstrap instructions
a copy of the operating system

Refer to the exhibit. The network is configured with RIPv2. However, network administrators notice that communication cannot be successfully completed from one LAN to another. A network administrator issues the show ip route command on the HQ router. Based on the output, what should be done to correct the problem?

Disable the load balancing feature of RIPv2.
Issue the no auto-summary command for RIPv2.
Replace RIPv2 with EIGRP which supports VLSM.

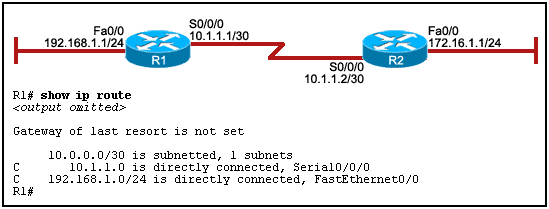

Refer to the exhibit. Hosts on the 192.168.1.0 network cannot communicate with hosts on the 172.16.1.1 network. The network administrator has run the show ip route command on R1.

What could be the cause of this problem?

The FastEthernet interface on R1 is disabled.

What is a function of the console port on a router?

It is used to manage the router.
It is used for packet receiving and forwarding.
It is used to interconnect various types of LANs.
It is used to interconnect a variety of serial links including T1, DSL, and ISDN.

Refer to the exhibit. What is the purpose of the ip bandwidth-percent eigrp 50 10 command?

to limit the bandwidth EIGRP packets can use to 6.4 kb/s
to limit the bandwidth EIGRP packets can use to 10 kb/s

A router boots and enters setup mode. What is the reason for this?

The IOS image is corrupt.
Cisco IOS is missing from flash memory.
The configuration file is missing from NVRAM.
The POST process has detected hardware failure.

Which three statements are true regarding the encapsulation and de-encapsulation of packets when traveling through a router? (Choose three.)

The router modifies the TTL field, decrementing it by one.
The router changes the source IP to the IP of the exit interface.
The router maintains the same source and destination IP.
The router changes the source physical address to the physical address of the exit interface.
The router changes the destination IP to the IP of the exit interface.
The router sends the packet out all other interfaces, besides the one it entered the router on.
